196A5Z Dial Indicator In Case

196 & 196M Universal Plunger Dial Indicators

Our 196 Indicator is one of the most versatile indicators available … and it is the “granddaddy” of them all.
Over the years this tool has been improved by methods and materials, but the basic design is unchanged. The
design has withstood the test of time and beaten all challengers

While there is a need for indicators with finer graduations, such as our 708 Indicators, this indicator with graduations to .001” and 0.02mm will handle by far the majority of jobs. Shank diameter is 1/4” (6.3mm).

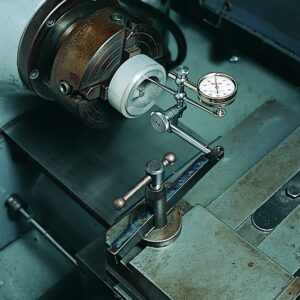

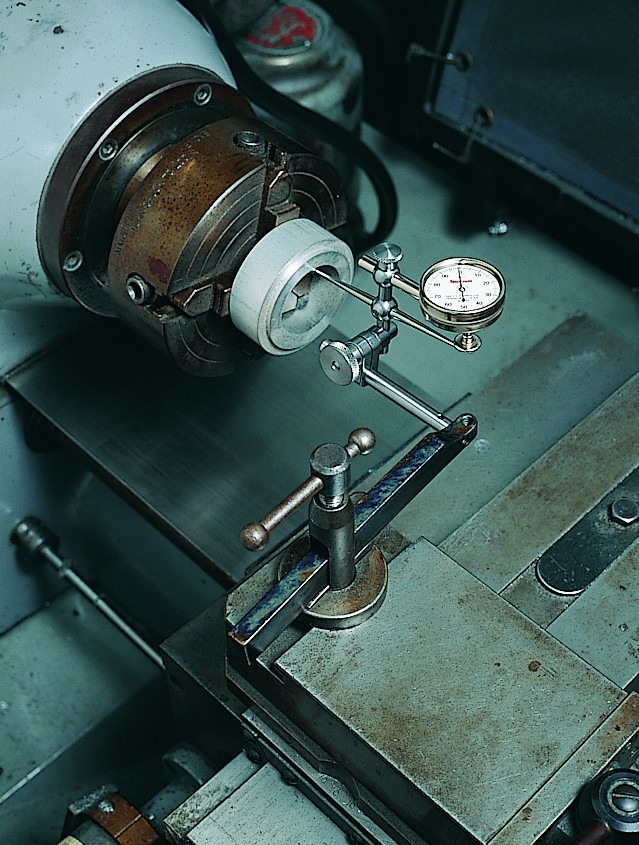

For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

• Accurate and reliable
• Simple to operate
• Rugged, with few moving parts
• Smooth in operation

• Item Number: BW777
• Global Item Number: 196A5Z
• Grad: .001”
• Range: .200”
• Dial Reading: 0-50-0

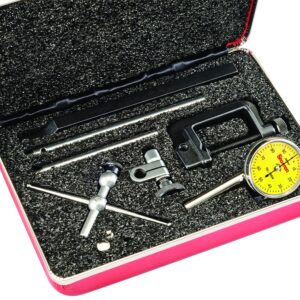

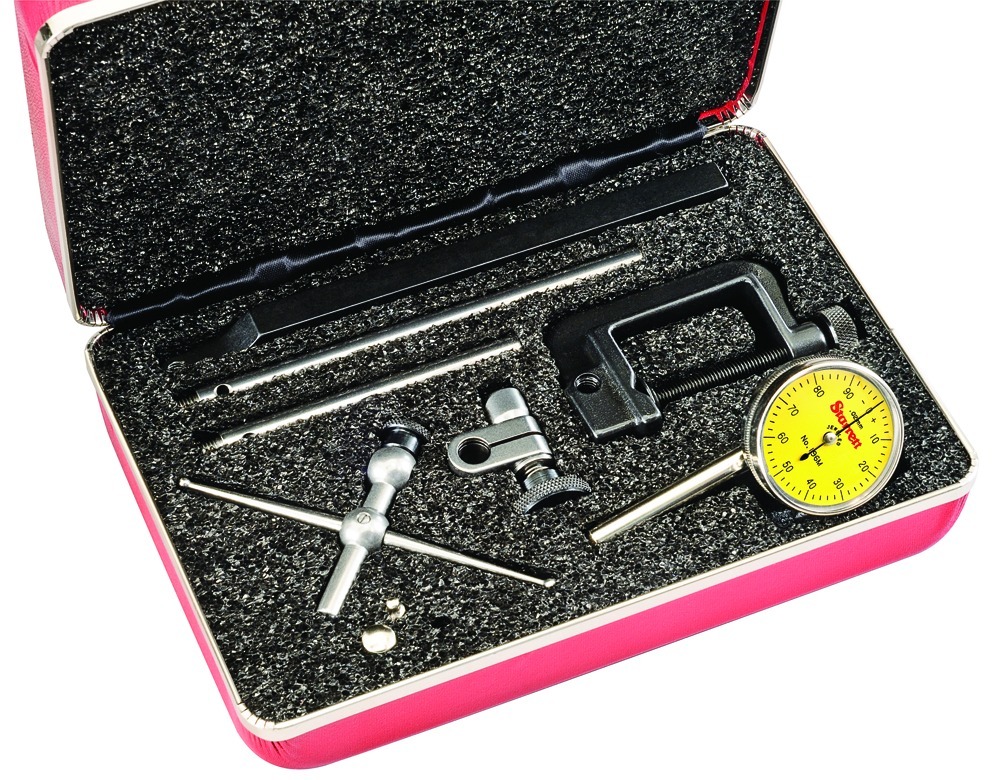

• Description: Indicator with 3 contact points, adapter, 4 attachments** in case
• Status*: MTO
• Country of Origin: USA

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
