827MB Edge Finder

£38.92 Exc VAT

In Stock

Product Details

827 Edge Finders
.375”, .500” AND 10MM BODY DIAMETERS FOR FAST, ACCURATE WORK LOCATION
Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels or centre points and scribed lines – all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity

HOW TO USE:

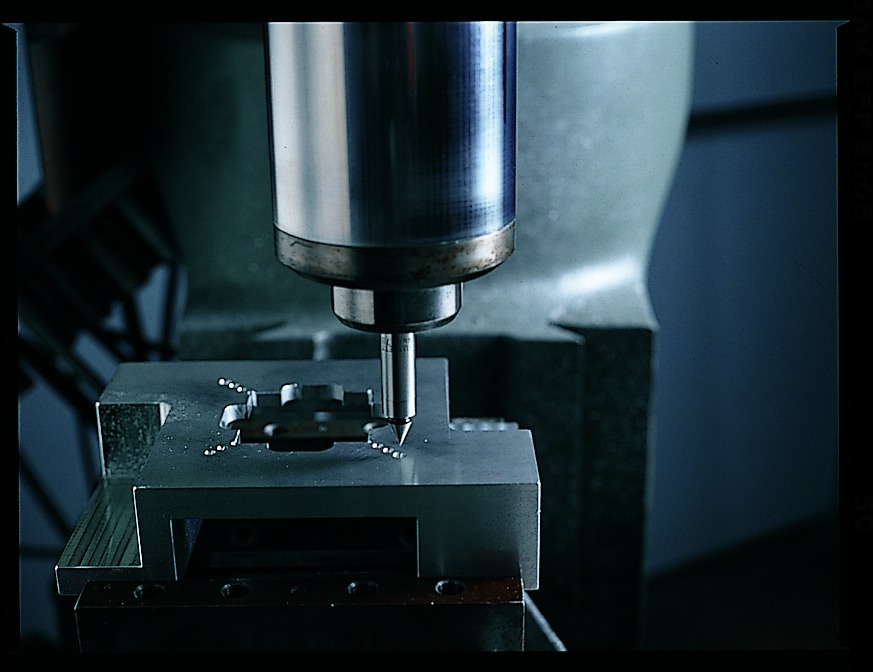

Edge finders are easy to use. They are placed in a collet or chuck. The worktable is then traversed to obtain contact between the rotating edge finder and the work. Contact will shift to concentric position relative to the body and with very slight additional table adjustment, will move off centre with a decided wobble. At this point, the centre of the finder is exactly one-half the diameter of the contact from the work edge, permitting accurate location for other machining operations relative to the edge. For locating centre points and scribed lines, the pointed contact is used by putting a pencil or rule against the centre point and making it run concentrically. Then the point is brought down to the centre point or intersection of scribed lines and the table is adjusted so that when the tool barely touches the work, the lineup with the point in question can be ascertained.

Specification
  • Item Number: DN985
  • Global Item Number: 827MB
  • Body Diameter: 10mm
  • Contact Diameter: 6mm and pointed contact
  • Description: Double End
  • Status*: MTS
  • Country of Origin: China

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
