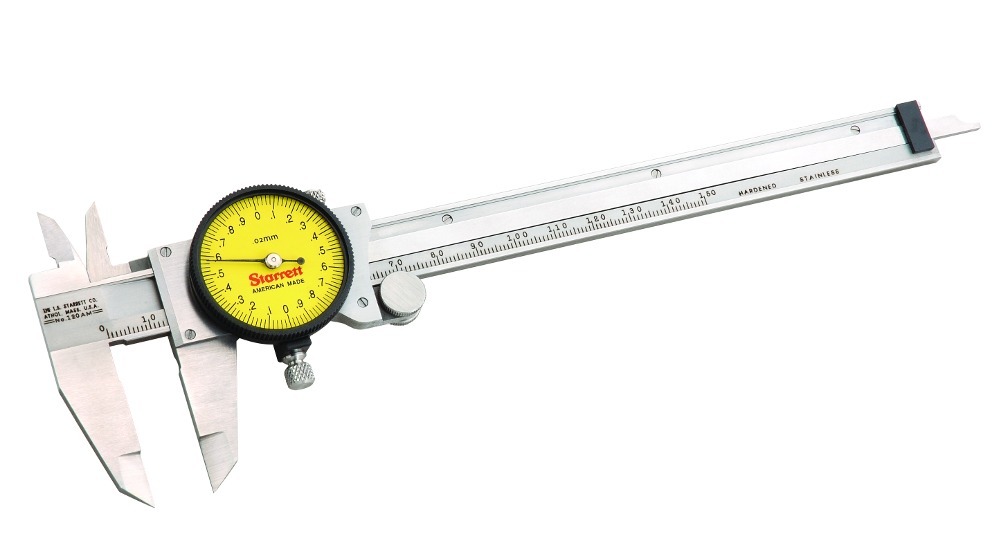

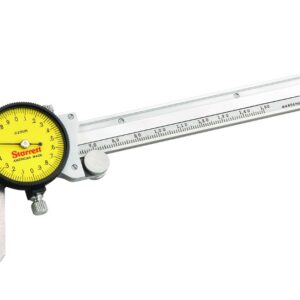

120 DIAL-CALIPER

The Only American Made Dial Caliper …This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable and accurate.

READABILITY FEATURES

• Sharp, clear dial graduations of 2mm in one revolution
• Sharp, black graduations on the satin finished bar, every 1mm

EASE-OF-HANDLING FEATURES

• Knife-edge contacts for both inside and outside measurements
• One hand use with the thumb-operated, fine adjustment roll
• Lock screw for dial bezel and for holding the sliding jaw in position
• Parallel lines can be scribed on a workpiece by setting the caliper jaw to the required dimensions, locking the movable jaw with the lock screw and then using the front edge of the fixed jaw as the scribing surface

ACCURACY AND LONG-LIFE FEATURES
• Hardened stainless steel bar, measuring surfaces, rack, gears and depth rod
• Positive, split-gear anti-backlash control
• Rack teeth point down to make it easy to shed foreign matter and thereby keep the area clean

• Item Number: BQ962
• Global Item Number: 120AM-150
• Range: 0-150mm
• Dial color: Yellow
• Jaw Depth (mm): 16
• Status*: MTO
• Country of Origin: USA

*MTO Made to order – Products subject to longer lead times when stock is not available.
MTO lead times: China: 90 days / USA: 120 days.
*MTS Made to stock (regular availability).
